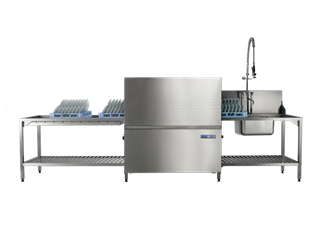

Conveyor dishwasherCN200
  • Feature
  • Parameter
  • Appendix
  • Model：CN200
    - For dishwash room of hotel, restaurant, employee dining room, etc.
    - smartronic and single button control with alerting and fault diagnosis
    - large volume and thermal insulation wash tank
    - anti-clogging wide angle nozzles fan, provide a substantially broader and more precise spray pattern
    - dual rinse system
    - double skin with insulation of whole wash machine chamber, reduce heat emission
    - one integral wash-arms modular, easy to remove and assemble
    - optimum hygienic safety by one piece deep draw tank with round corner
    - emergency-stop and main switch included, meet CE safety requirements
    - limit switches, protect machine even under unexpected wrong operation
    - self-clean function
  • - wash capacity: 200/133 Racks/h
    - water consumption: 1.3/2 L/rack
    - wash temperature: 60-62℃(up to 71℃)
    - rinse temperature: 82-90℃
    - voltage: 380V/50Hz/3N
    - total loading: electric:39.5 kW (69 A) or Steam:3.5 kW (10 A)
    - loading height: 440 mm
    - rack size: 500×500 mm
    - dimensions: 1352×772×1474 (H) mm
    - origin: China
  • OPTION:
    electric:
    - electric dryer, 5 kW, hot air cycle 510 m3/h, 2150 (H) mm, using with exhaust fan
    - heat recovery, saving 6 kW
    - thermolabel test feature (total loading 51.5 kW, 92 A)

    OPTION:
    Steam
    - steam dryer, hot air cycle 510 m3/h, 2150 (H) mm, using with exhaust fan
    - heat recovery
